6D10G240


6D10 series diesel engine(205kw to 392kw) is 6 cylinders. Total displacement 9.7L. It has three air intake methods: natural aspirated, turbo-charged and turbocharged & intercooled. Speed from 1500r/min to 2150r/min, in which the minimum fuel consumption is 194g/kWh. The edges of this series are small volume, light, strong power, low fuel consumption, advanced emission index, minimum interference and high interchangeability.



with dry cylinder liners to avoid the fault which leaking to oil pan.

Each cylinder has one cylinder cover for easy maintenance.

P7100 injection pump, low-inertia small aperture P-type injector

Increasing water filters to make fuel cleaner

Honeywell's new high efficiency turbocharger

Air cooling air and water cooling air is optional.

Exhaust manifold mud packs

Stage IV, Tier4 transitional stage and final stage


Model

6D10G240

Type

Water-cooling, In-line, 4-stroke, Direct Injection

Rated Output

240 kW

Standby Output

326 kW

Speed

1500 r/min

Cylinder No

6

Firing Order

1-5-3-6-2-4

Intake Type

Turbocharged air-to-air charge cooled

Compression Ratio

16:1

Bore * stroke

126*130 mm

Displacement

9.7 L

Governor

Mechanical ≤5%

Flywheel No.

14″

Flywheel housing No.

SAE1#

Rotation from Flywheel End

Anti-clockwise

Net weight

1210 kg

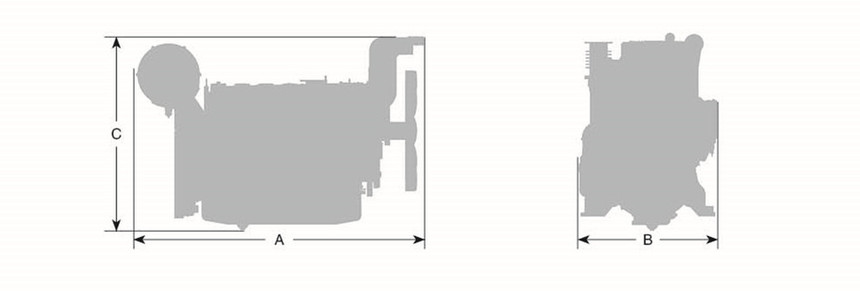

Dimension


A mm

1772

B mm

846

C mm

1220
