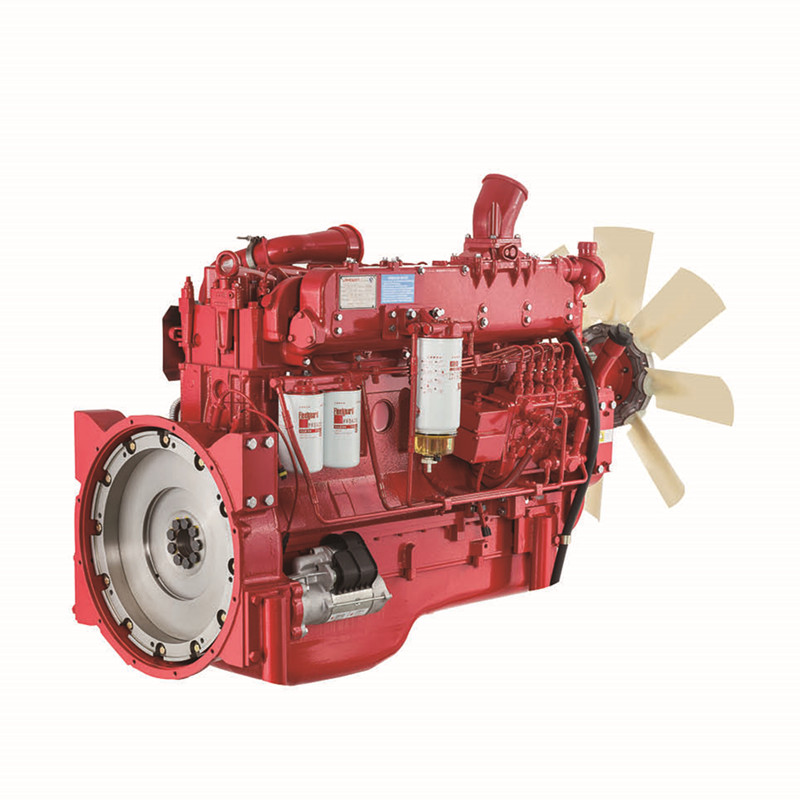

6D10B280

6D series diesel engine(140kw to 280kw) is 6 cylinders. Total displacement 9.7L. It has three air intake methods: natural aspirated, turbo-charged and turbocharged & intercooled. Speed from 1500r/min to 2400r/min, in which the minimum fuel consumption is 194g/kWh. The edges of this series are small volume, light, strong power, low fuel consumption, advanced emission index, minimum interference and high interchangeability.

■with dry cylinder liners to avoid the fault which leaking to oil pan.

■Each cylinder has one cylinder cover for easy maintenance.

■P7100 injection pump, low-inertia small aperture P-type injector

■Increasing water filters to make fuel cleaner

■New high efficiency turbocharger

■Air cooling air and water cooling air is optional.

■Exhaust manifold mud packs

■Stage IV, Tier4 transitional stage and final stage

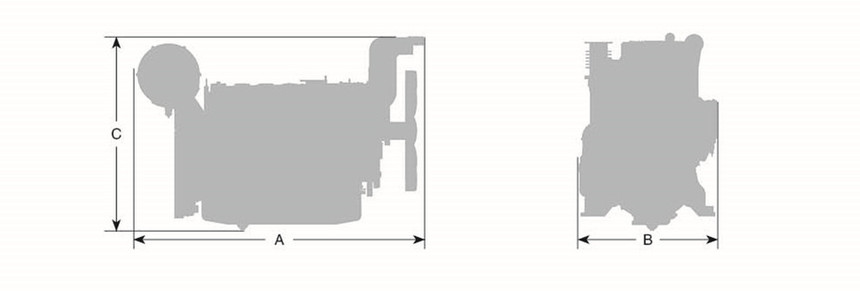

Dimension
