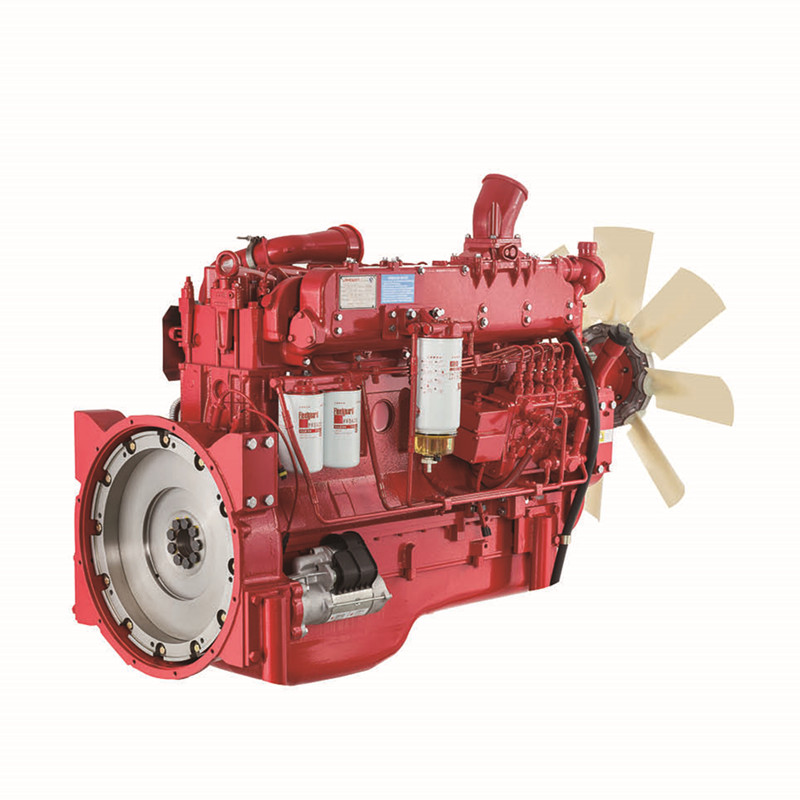

6D10 series diesel engine(140kw to 280kw) is 6 cylinders. Total displacement 9.7L. It has three air intake methods: natural aspirated, turbo-charged and turbocharged & intercooled. Speed from 1500r/min to 2400r/min, in which the minimum fuel consumption is 194g/kWh. The edges of this series are small volume, light, strong power, low fuel consumption, advanced emission index, minimum interference and high interchangeability.
■with dry cylinder liners to avoid the fault which leaking to oil pan.
■Each cylinder has one cylinder cover for easy maintenance.
■P7100 injection pump, low-inertia small aperture P-type injector
■Increasing water filters to make fuel cleaner
■Honeywell's new high efficiency turbocharger
■Air cooling air and water cooling air is optional.
■Exhaust manifold mud packs
■Stage IV, Tier4 transitional stage and final stage
Model | 6D10B162 |
Type | Water-cooling, In-line, 4-stroke, Direct Injection |
Rated Output | 162 kW |
Standby Output | 178 kW |
Speed | 1800/2200 r/min |
Cylinder No | 6 |
Firing Order
| 1-5-3-6-2-4 |
Intake Type | Turbocharged air-to-air charge cooled |
Compression Ratio | 17:1 |
Bore * stroke | 126*130 mm |
Displacement | 9.7 L
|
Governor | Mechanical ≤9% |
Flywheel No. | 14″ |
Flywheel housing No. | SAE1# |
Rotation from Flywheel End | Anti-clockwise
|
Net weight | 950 kg
|

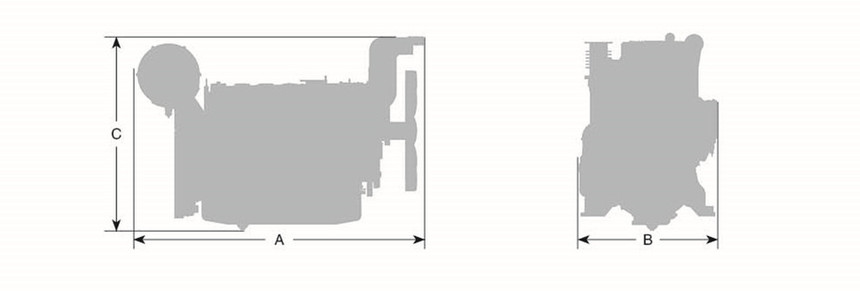

Dimension
