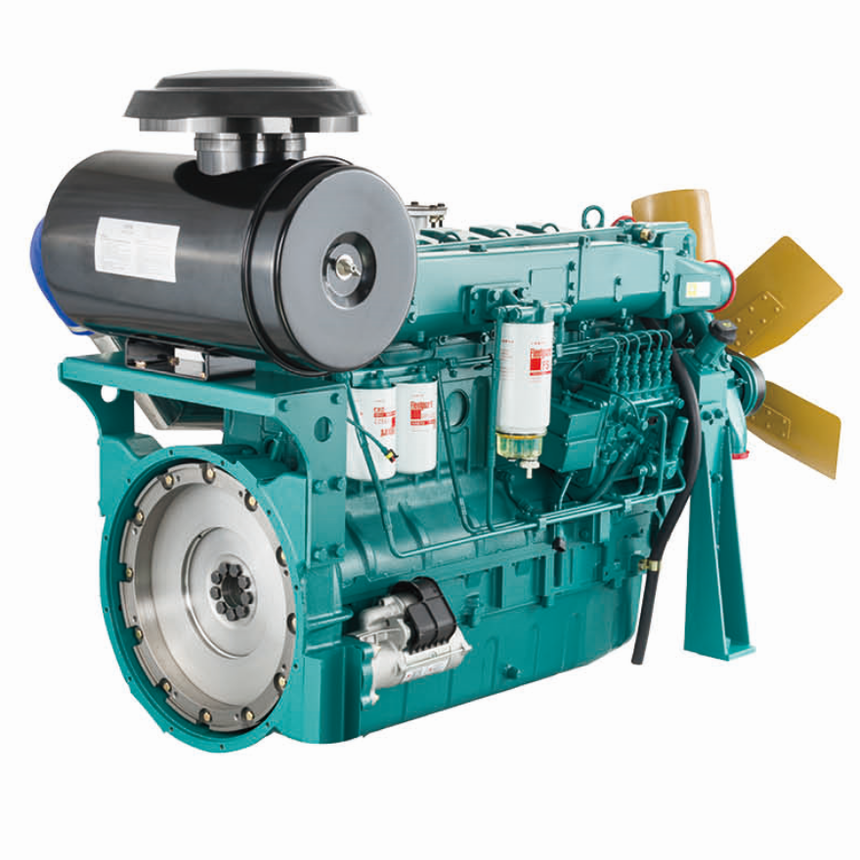

D2765A-1


D2765 series is international leading technolog diesel engine independently developed by Lambert, with a new design concept, and is the best choice for generating. Air intake methods: turbocharged & intercooled. Speed from 1500r/min to 2200r/min, in which the minimum fuel consumption is 194g/kWh. The edges of this series are small volume, light, strong power, low fuel consumption, advanced emission index, minimum interference and high interchangeability.

■Enhanced engine body, crankcase, cylinder head, crankshaft, and connecting rod.

■Each cylinder has one cylinder cover for easy maintenance.

■P8500 injection pump, low-inertia small aperture P-type injector

■Increasing water filters to make fuel cleaner

■Honeywell's new high efficiency turbocharger

■Air cooling air and water cooling air is optional.

■Reasonable matching between intake & exhaust and fuel syste

■Stage IV, Tier4 transitional stage and final stage

Model	D2765A-1
Type	Water-cooling, In-line, 4-stroke, Direct Injection
Rated Output	368 kW
Standby Output	405 kW
Speed	1500/1800 r/min
Cylinder No	6
Firing Order	1-5-3-6-2-4
Intake Type	Turbocharged air-to-air charge cooled
Compression Ratio	17:1
Bore * stroke	126*166 mm
Displacement	12.6 L
Governor	Electronic ≤1%
Flywheel No.	14″
Flywheel housing No.	SAE1#
Rotation from Flywheel End	Anti-clockwise
Net weight	1200 kg
